主要技术参数
| 罐装速度 |
Canned speed |
X-y支/分（branch / min） |
罐装范围
罐装精度 |
Canned range
Tank accuracy |
5-250ml
≤±1% |
软管直径
软管长度 |
The hose diameter
The length of the hose |
Փ10-50mm
60-230mm |
| 料桶容量 |
Bucket capacity |
40L |
整机尺寸
征集重量 |
Overall size
Weight |
1500KG
X x Y x Z mm |
注：用户如有特殊规格，本公司可另行设计制造。Note: If the user has special specifications, We can design and manufacture according to customer’s special needs.
封尾样式

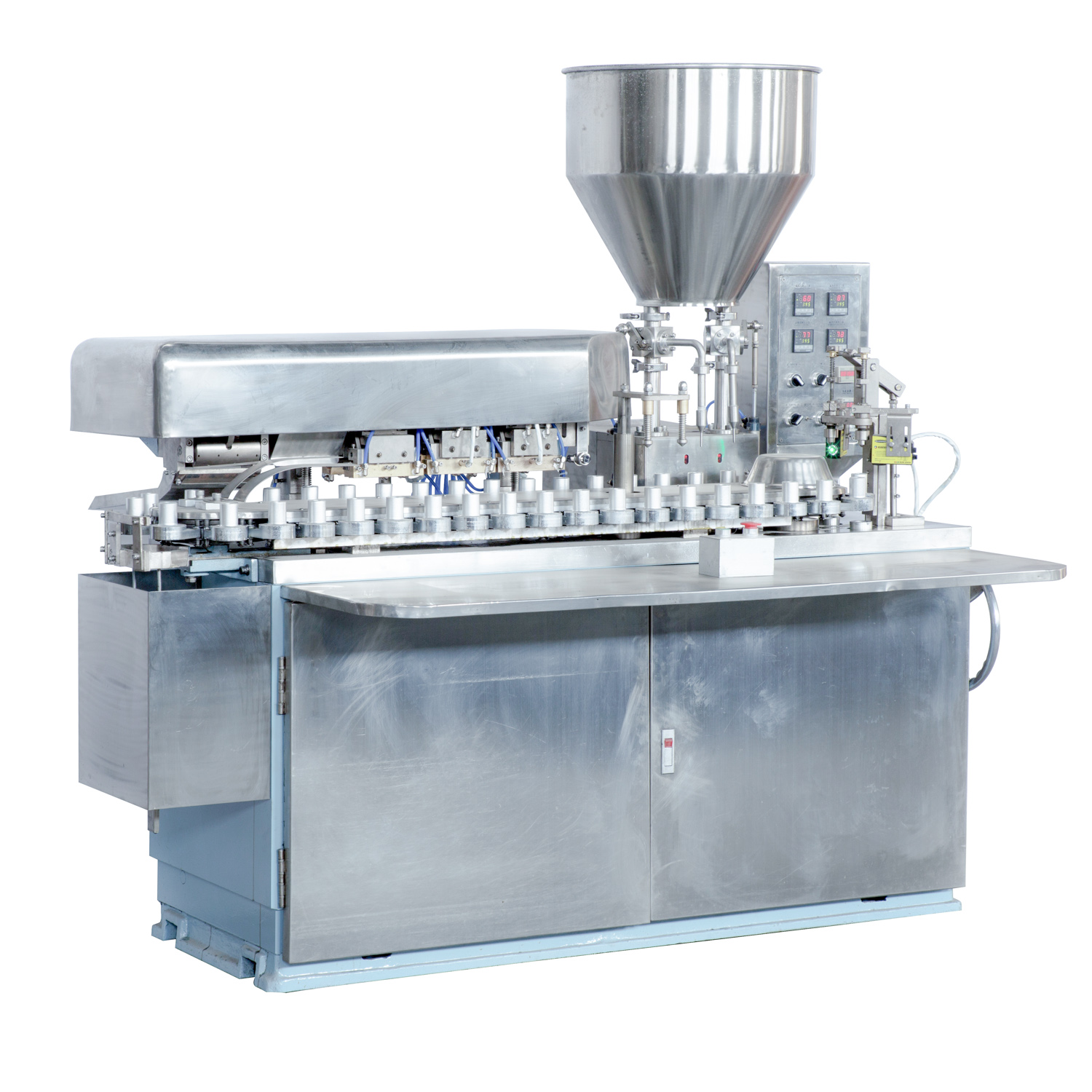

软管罐装封尾机适用于医药、食品、化妆品、日用化工等行业，可将各种糊状、膏状、粘度流体等物料顺利准确地注入塑料管、复合软管中，并完成封尾工作。能自动完成供管、识标、灌装、热熔、封尾、修剪、打码、出成品全过程。
The soft tube filling and sealing machine is suitable for industries such as pharmaceuticals, food, cosmetics, and daily chemical products. It can smoothly and accurately fill various types of paste, cream, and viscous fluids into plastic tubes, composite soft tubes, and automatically complete the processes of sealing, trimming, and coding. The machine is capable of automatically performing the entire process from tube feeding, label recognition, filling, hot melting, sealing, trimming, coding, to finished product output.
设备特点
1.模块化设计，可实现适用软管尺寸的快速调节。
2.采用PLC可编程控制系统、人机界面显示设备运行状况、故障、报警和成品计数。
3.采用气动真空装置完成供管，方便快捷、稳定可靠。
4.利用光电感应、回转式控制色标中心，定位精确。
5.物料接触部分采用316L不锈钢制造，清洁、卫生、完全符合GMP规范。
6.设有开门停机、无管不灌装、超载保护等多项安全保护装置。
7.性能稳定、操作简单方便。
1.Allows for quick adjustments to accommodate different soft tube sizes.
2.Utilizes a programmable PLC control system and a human-machine interface to display the operating status of the equipment, faults, alarms, and finished product counts.
3.Employs a pneumatic vacuum device for tube feeding, ensuring convenience, speed, and reliable stability.
4.Uses photoelectric sensing and rotary control of the color mark center for precise positioning.
5.Components that come into contact with materials are made of 316L stainless steel, ensuring cleanliness, hygiene, and full compliance with GMP standards.
6.Includes safety features such as door-opening shutdown, no-tube no-filling, and overload protection.
7.Ensures stable performance and simple, convenient operation.
